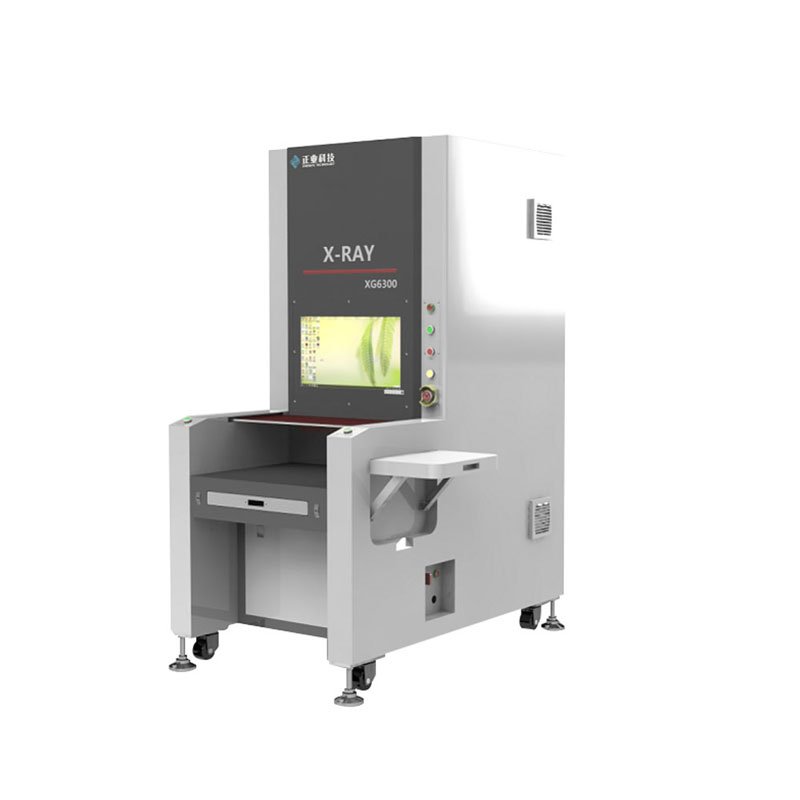

XRAY material counting machine
Zhengye Technology's X-ray material counting machine is mainly used in the SMT industry to quickly count the entire batch of materials, including but not limited to detecting discrete components such as capacitors, diodes, and transistors.
- Brand：Zhengye
- Tray size: 7”-15”,6-80mm
- Light tube voltage: 50KV
Product Details
Purpose:
Zhengye Technology’s X-ray material counting machine is mainly used in the SMT industry to quickly count the entire batch of materials, including but not limited to detecting discrete components such as capacitors, diodes, and transistors.
The main principle of the X-ray marking machine is to use the imaging principle of X-rays to image materials, obtain image information, count them, and provide feedback on the detection results. At present, Zhengye Technology’s X-ray material machine can achieve both fully automatic and manual detection methods.
Product features:
High material accuracy
Fast detection speed
Can interface with MES/ERP/WMS and other systems
Safe and reliable: anti pinch function for discharge
Barcode scanning, label printing, one-to-one data binding
Technical parameters:
| Whole machine status | Equipment size | L1430 * W848 * H1950（mm） |
| Power specifications | 220V 10A 50-60HZ | |
| control system | Industrial computer WIN10 64 bit | |
| Tray size | 7”-15”,6-80mm | |
| label printing | Zebra printer | |
| System integration | MES/ERP/WMS, etc. (based on customer needs) | |
| x-ray source | Light tube type | Low energy multi-purpose side window type |
| Light tube voltage | 50KV (compatible with other brands) | |
| Light tube current | 0-1000 uA | |
| output power | 50 W | |
| flat panel detector | Tablet type | flat panel detector |
| Field of view range | 434mm×434mm | |
| pixel matrix | 3072×3072 | |
| Separation rate | 3.6lp/mm | |
| Machine safety | Security access control | The door is open and the X-ray cannot be opened |
| Radiation amount | ＜ 1 µSv/Hour |
