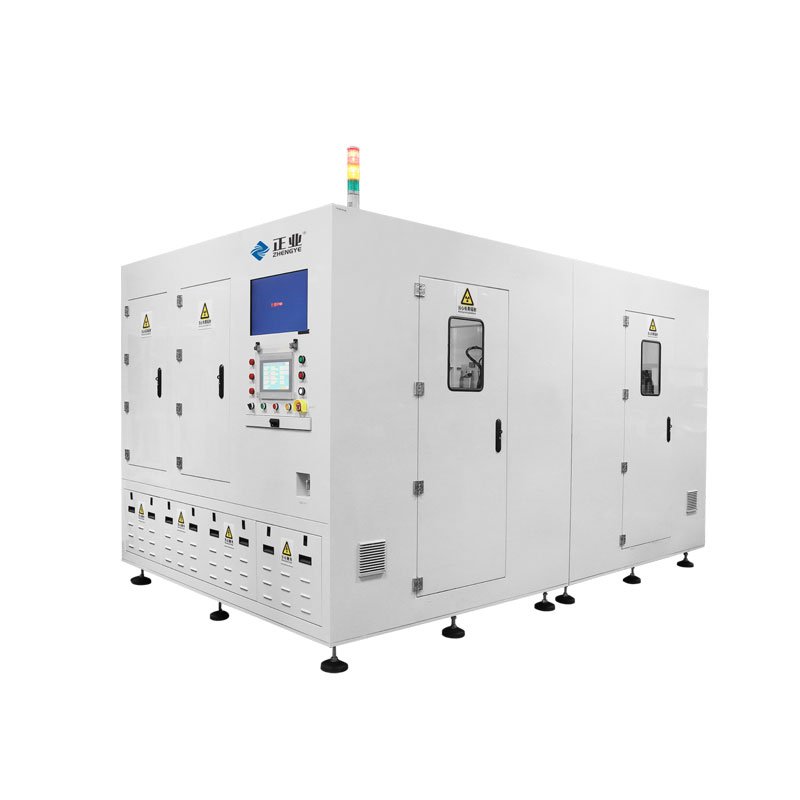

automatic X-ray inspection machine

Application introduction:

An imaging system for online detection and analysis is used for online fully automatic detection of laminated power batteries.

The device emits X-rays through an X-RAY generator, which penetrate the inside of the battery. The imaging system receives X-ray images and takes photos. The image is processed and automatically measured and judged through relevant software to determine good and bad products, and the bad products are selected. The front and back ends of the device can be connected to the production line.

Product Features:

1. Automatic detection: automatic detection and judgment, automatic sorting of good and bad products.

2. Real-time monitoring: real-time monitoring of all actions, signals, and hardware status, and presenting them on the software operation interface.

3. Image and data storage: multiple parts of the same battery are detected and displayed in the same software interface for easy observation and identification.

4. Safety and environmental protection: the entire device is safety interlocked, with triple protection functions, and any part of the body surface meets the safety radiation standards.

Technical parameters:

XG5200D
Light pipe	Light tube voltage	MAX 90KV-110KV
	Light tube current	MAX 89uA-455Ua
	Focus size	5-15um
	Cooling method	Forced air cooling
Imaging System	style	ф100mm/130x130mm
	Field of view	Intensifier/Flat Panel Detector
	X-CCD resolution	1536*1536/1024*1024Pixels
	quantity	1set
Detection accuracy	Repeatability test accuracy	60um
efficiency	Detection efficiency	≥80ppm
	Error rate	≤2%
	Missed Detection Rate	0%
	Product quality	≥99.5%
Safety Standards	International Radiation Safety Standards	≤1μSV/hr
	Host size	3000*1800*1750mm
	power supply	AC220V/50HZ，about 1500W
	Temperature and humidity	25 ℃±3 ℃ RH50%±10%
Applicable battery size range	Length	80~250mm
	Width	180~300mm
	Thickness	5~25mm
