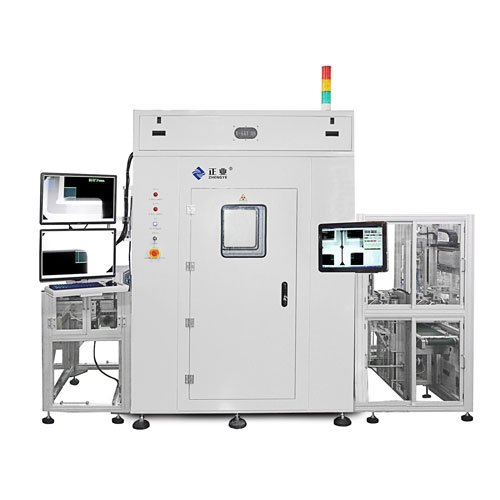

Automatic X-ray inspection machine

Application introduction:

Two imaging systems for online detection and analysis, mainly used for online fully automatic detection of multi-layer winding power batteries

Product Features:

1. Fully automatic detection: automatic detection and judgment, automatic sorting of good and bad products.

2. Database modeling: customers can freely set according to the detection standards, and there are up to 60 modeling models; the equipment automatically switches by reading barcodes or QR codes.

3. Real-time monitoring: real-time monitoring of all actions, signals, and hardware status, and presenting them on the software operation interface.

4. Smart pairing of OK batteries: the software automatically determines AB model batteries, and AB model pairing flows to the next production process.

5. Real-time online display of images and data: multi-part detection images and data of the same battery are displayed in the same software interface for easy observation and identification.

6. Safety and environmental protection: the entire equipment is safety interlocked, with triple protection functions, and any part of the body surface meets the safety radiation standards.

Test object:

Test the alignment of the positive and negative electrodes of the wound power battery.

Technical parameters:

XG5200A
Light pipe	Light tube voltage	MAX 90-130KV
	Light tube current	MAX 89uA-455Ua
	Focus size	5-15um
	Cooling method	Forced air cooling
Imaging System	style	Intensifier/Flat Panel Detector
	Field of view	114.9*64.6mm or ф100mm
	X-CCD resolution	1024*1024Pixels/1536*864Pixels
	quantity	4 set
Detection accuracy	Repeatability test accuracy	60um
efficiency	Detection efficiency	≥24ppm
	Error rate	≤2%
	Missed Detection Rate	0%
	Product quality	≥99.5%
Safety Standards	International Radiation Safety Standards	≤1μSV/hr
	Host size	4000*1600*2200mm
	power supply	AC220V/10A，about 2500W
	Temperature and humidity	25 ℃±3 ℃ RH50%±10%
