Semi-automatic X-ray inspection machine

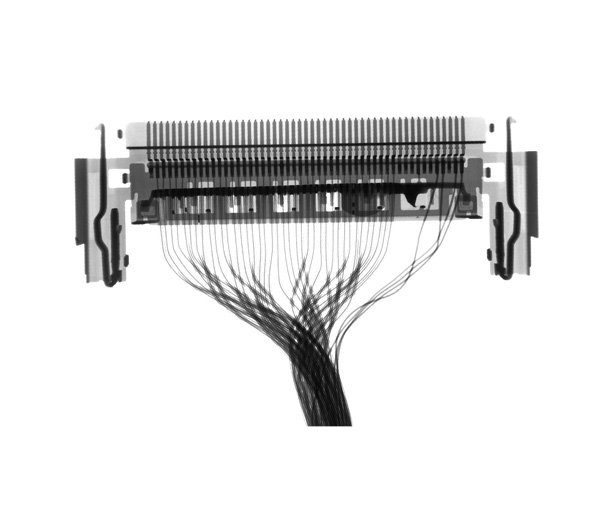

The X-ray inspection machine XG5010 is widely used in lithium battery, SMT, LED, electronic products processing and casting manufactures. It mainly analyses internal defects of product with images in high quality, high magnification and high resolution.
- Tube Voltage:MAX 90KV
- Focal Spot Size:5-15μm
- loading weight:≤5Kg
Product Details
USAGE
Battery productions are tested online real-time with the X-ray transmission principle.
The X-ray inspection machine XG5010 is widely used in lithium battery, SMT, LED, electronic products processing and casting manufactures. It mainly analyses internal defects of product with images in high quality, high magnification and high resolution.
The machine with automatic testing software is special for square-shape soft packing battery. And the software is independent research and development by our team. It realize automatic measurement and judgment.
Characteristics
(1)Automatic detection:
Automatic detection alignment of negative and positive of battery, and statistics the maximum/minimum values at the same time.
(2)Automatic judgment:
Automatic judgment of NG/OK products according to the setting standard.
(3)Convenient and quick:
Accurate positioning, rapid analysis, detection images are convenient to real-time online query.
APPLICATIONS
It is widely used in lithium battery, IC,SMT, LED, electronic products manufacturing ，Medical product， Aerospace components, and casting processing industries. Customer can easily obtain image with high quality, high magnification and high resolution to effectively analyses the internal defects of product.
TECHNICAL PARAMETER
| X-ray Tube | Tube Voltage | MAX 90KV |
| Tube Current | MAX 89-455uA | |
| Focal Spot Size | 5-15μm | |
| Cooling Mode | Strong wind cooling | |
| Image-forming System | type | Enhancer/Plate Detector |
| Resolution | ф100mmy114.9mmx64.6mm | |
| X-CCD Resolution | 1392*1040 /1536*864pixels | |
| Geometrical magnification | 12-48X | |
| Detection Speed and Accuracy | Repeat testing accuracy | 60μm |
| Software testing speed | 1.5s per check point(excluding loading / unloading time and movement time) | |
| Loading Platform | Standard size | 515mm X 460mm |
| Effective size | 450mm X 410mm | |
| loading weight | ≤5Kg | |
| Safety Standard | International Radiation Safety Standards | ≤1usv/hr |
| Other Parameters | Computer | 22 inch screen LCD, I5 processor, 4G of memory, 500G hard drive |
| Dimension | 1136mm*1076mm*1730mm | |
| Weight | 750kg | |
| Power | AC220V 10A | |
| Temperature | 25℃ ± 3℃ | |
| Humidity | 50%RH ± 10%RH |
